M12 12V Heavyweight Winch
电动绞盘 · M12 12V Heavyweight Winch
A Reliable Workhorse to Meet Heavy Winching Needs. The M12000 Series 12V electric winch has a pull capacity of 12,000 pounds. It comes with 125' of 3/8" (38m of 9.5mm) diameter wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Brake provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Chip-resistant powder-coated finish
- Does include Mounting Hardware, winch mount not included
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Big torque, 12,000 lbs. of pulling power, and fast no-load retrieval speed give the M12 a great combination of heavy-duty capacity and high performance. If you’ve got a big truck and are looking for a true workhorse, this winch is where it’s at.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 12,000 Lbs., (5440 kg) single-line |
| Motor | Series wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 261:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake | Automatic mechanical cone |
| Drum diameter/Length | 3.5’’/8.2’’ (9cm/21cm) |
| Rope | M12: 3/8” x 125’ (9.5mm x 38m) steel |
| Fairlead | M12: Roller |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Argent gray powder coat |
| Weight | M12: 133 lbs. (60 kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

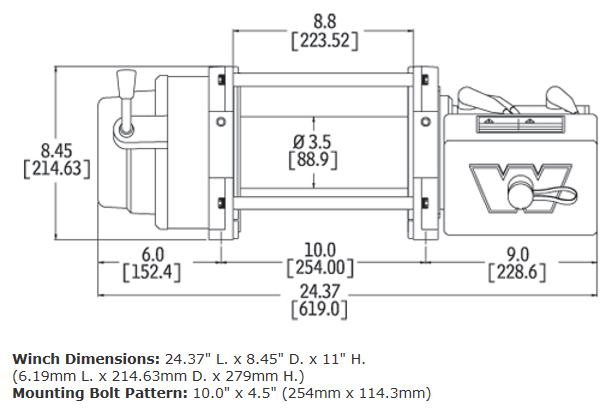

外形尺寸

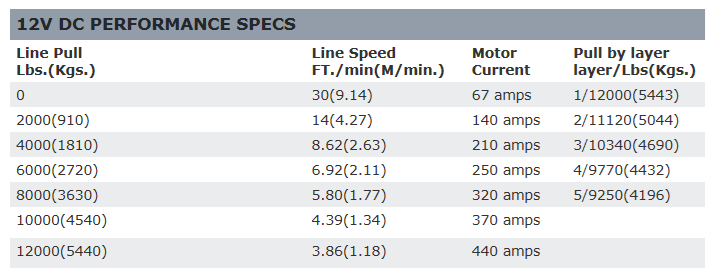

技术图
