M12 24V Heavyweight Winch
电动绞盘 · M12 24V Heavyweight Winch
Note: The M12000 Series 24volt electric winch has a pull capacity of 12,000 pounds. It comes with 125' of 3/8" wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Max Line Pull/ Line Speed - 12000 Pound / 3.86 Feet Per Minute
- Big Torque Power
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
- Remote Type - Remote control with 12' cord.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For heavy duty Winching needs, this Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is 30 Foot per Minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6 Horsepower series wound motor and our proven three stage planetary gear train. With 125 Foot of 3/8 Inch wire rope.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 12,000 Lbs., (5440 kg) single-line |
| Motor | Series wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 261:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake | Automatic mechanical cone |
| Drum diameter/Length | 3.5’’/8.2’’ (9cm/21cm) |
| Rope | M12: 3/8” x 125’ (9.5mm x 38m) steel |
| Fairlead | M12: Roller |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Argent gray powder coat |
| Weight | M12: 133 lbs. (60 kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

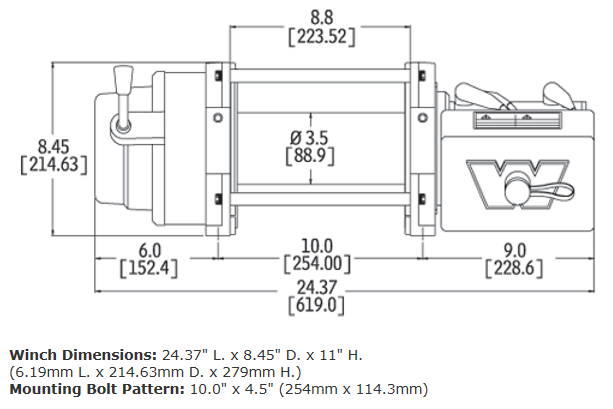

外形尺寸
