M12-S Heavyweight Winch
电动绞盘 · M12-S Heavyweight Winch
The M12-S has winch capacity of 12,000 lbs. and comes with 100’ of 3/8” Spydura synthetic rope with polished aluminum fairlead and Epic Hook
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- 12,000 Pounds Capacity
- Contactor Control For The Ultimate In Reliable Electronics
- Durable, Smooth Three-Stage Planetary Gear Train
- Remote Type - Remote control with 12' cord
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Big torque, 12,000 lbs. of pulling power, and fast no-load retrieval speed give the M12-S a great combination of heavy-duty capacity and high performance. If you’ve got a big truck and are looking for a true workhorse, these winches are where it’s at.

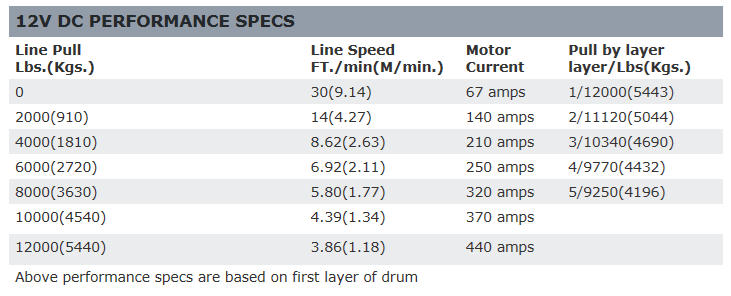

规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 12,000 Lbs., (5440 kg) single-line |
| Motor | 12V DC, series wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 261:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake | Automatic mechanical cone |
| Drum diameter/Length | 3.5’’/8.2’’ (9cm/21cm) |
| Rope | M12-S: 3/8’’ x 100’ (9.5mm x 30m) Spydura synthetic |
| Fairlead | M12-S: Aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Argent gray powder coat |
| Weight | M12-S: 102 lbs. (46 kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

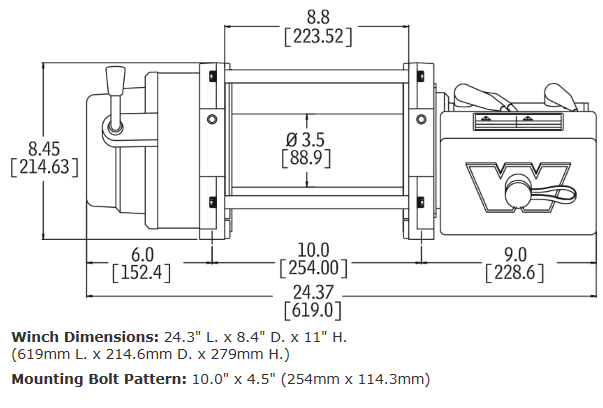

外形尺寸
技术图
