M15 12V Heavyweight Winch
电动绞盘 · M15 12V Heavyweight Winch
The M15000 Series 12 volt electric winch is vehicle mounted and has a pull capacity of 15,000 pound. It has a 90' of 7/16" wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 15,000 lbs（6,804 kgf）
- High strength carrier plates designed to handle heavy gear train stresses
- Chip-resistant powder-coated finish resists corrosion
- Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Got a full-size truck? The M15 offers 15,000 lbs. of pulling capacity for heavy-duty jobs. The large-frame architecture means this winch will stand up to the stresses of heavy winching. Plus, its removable control pack allows for clearance and ease of access.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 15,000 lbs. (6804 kg) single-line |
| Motor | Series wound, Series wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 315:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake | Automatic mechanical cone |
| Drum diameter/Length | 3.5’’/8.2’’ (9cm/21cm) |
| Fairlead | M15: Roller |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Argent gray powder coat |
| Weight | M15: 135 lbs. (61 kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

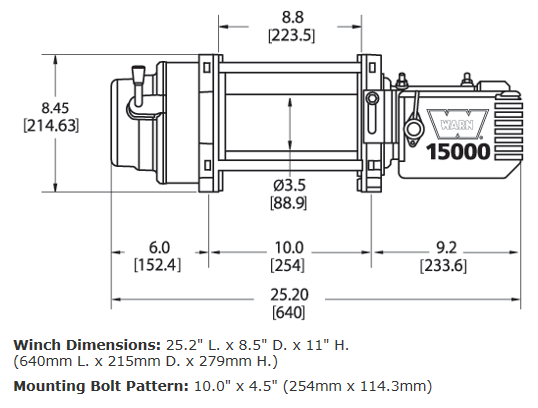

外形尺寸

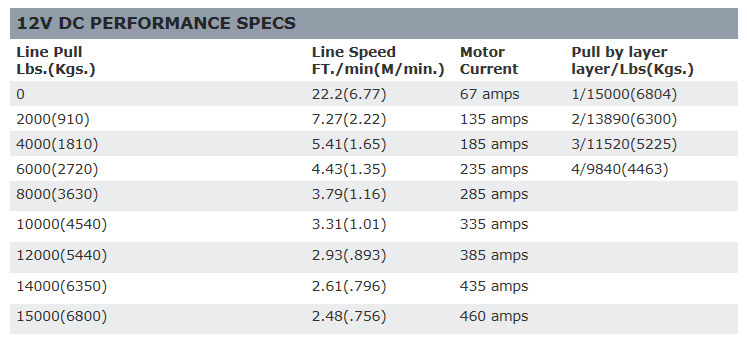

技术图
