WARN
M15-S Heavyweight Winch
电动绞盘 · M15-S Heavyweight Winch
The M15-S 12 volt electric winch has a pulling capacity of 15,000 pounds. It comes with 80' of 3/8" Spydura synthetic rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 15,000 lbs（6,804 kgf）
- 15,000 lb. capacity
- Includes 18,000 lb capacity EPIC hook
- Contactor control for the ultimate in reliable electronics
- Durable, smooth three-stage planetary gear train
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Got a full-size truck? The M15-S offers 15,000 lbs. of pulling capacity for heavy-duty jobs. The large-frame architecture means this winch will stand up to the stresses of heavy winching. Plus, its removable control pack allows for clearance and ease of access.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 15,000 lbs. (6804 kg) single-line |
| Motor | 12V DC, series wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 315:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake | Automatic mechanical cone |
| Drum diameter/Length | 3.5’’/8.2’’ (9cm/21cm) |
| Rope | M15-S: 3/8’’ x 80’ (9.5mm x 24.3m) Spydura Pro synthetic |
| Fairlead | M15-S: Aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Argent gray powder coat |
| Weight | M15-S: 102 lbs. (46 kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

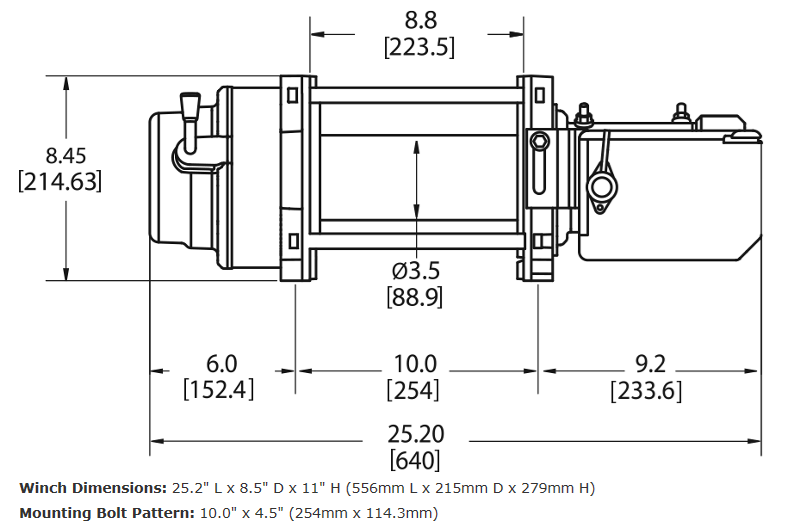

外形尺寸

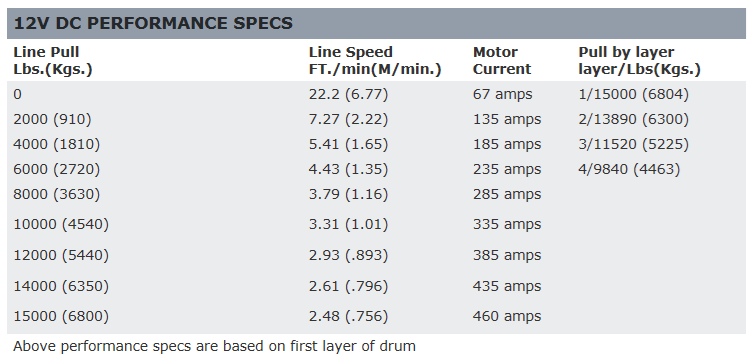

技术图
