M8274 10,000lb Winch with Steel Rope
电动绞盘 · M8274 10,000lb Winch with Steel Rope
The M8274–Warn Industries’ most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 125’ of 3/8” diameter aircraft-grade steel cable.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
- Restyled high-strength polymer control pack housing for a modern twist on classic styling
- Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
- Made in the USA in Clackamas, Oregon
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The M8274 is evolving. We took our most iconic winch and added more performance and more features. It is still the fastest of any WARN winch and has the longest rope length (150’), but we’ve added more power courtesy of a 6hp motor, a 10,000 lb. capacity, and contactor control. The legend continues.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 10,000 lbs. (4536 kg) single-line |
| Motor | 12V DC, 6HP Series Wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3 Stage Spur Gear |
| Gear ratio | 134:1 |
| Clutch (freespooling) | Sliding motor pinion gear |
| Brake | Automatic disc type |
| Drum diameter/Length | 3.5”/8.5” (9cm/22cm) |
| Rope | M8274: 3/8” x 125’ Steel rope |
| Replacement Rope | M8274: 3/8” x 125’ Steel rope - Replacement PN 106141 |
| Fairlead | M874: Roller Fairlead |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Powder coat with clear coat |
| Weight | M8274-S, M8274: 90lb (40.8kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

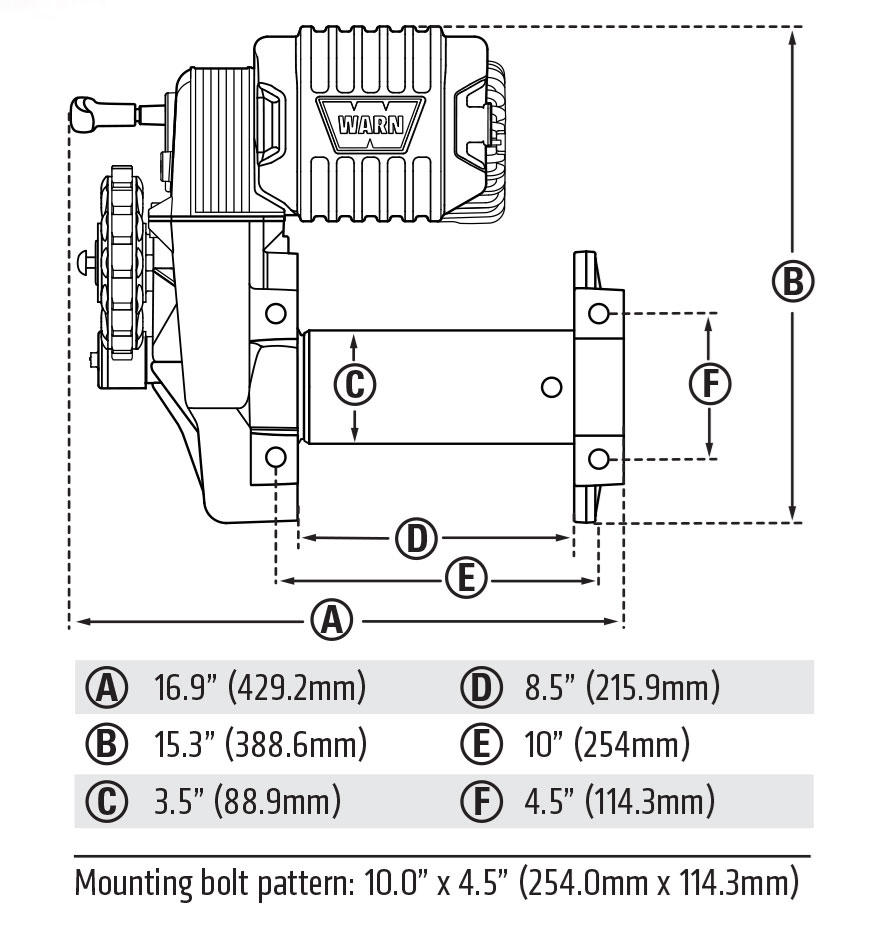

外形尺寸

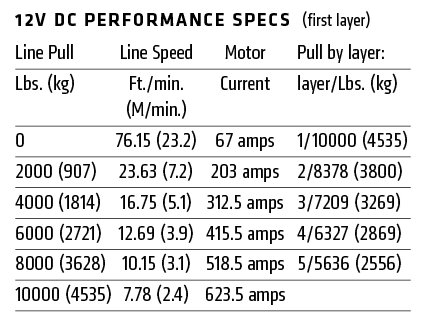

技术图
