M8274-S 10,000lb Winch - Synthetic
电动绞盘 · M8274-S 10,000lb Winch - Synthetic
The M8274-S Warn Industries’ most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 150’ of 3/8” diameter lightweight, easy-to-handle Spydura synthetic rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
- Restyled high-strength polymer control pack housing for a modern twist on classic styling
- Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
- Made in the USA in Clackamas, Oregon
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 10,000 lbs. (4536 kg) single-line |
| Motor | 12V DC, 6HP Series Wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, 12’ (3.7m) lead |
| Geartrain | 3 Stage Spur Gear |
| Gear ratio | 134:1 |
| Clutch (freespooling) | Sliding motor pinion gear |
| Brake | Automatic disc type |
| Drum diameter/Length | 3.5”/8.5” (9cm/22cm) |
| Rope | M8274-S: 3/8” x 150’ Spydura synthetic rope |
| Fairlead | M8274-S: Forged Hawse Fairlead |
| Replacement Rope | M8274-S: 3/8” x 150’ Spydura synthetic rope - replacement PN 102343 |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Powder coat with clear coat |
| Weight | M8274-S, M8274: 90lb (40.8kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

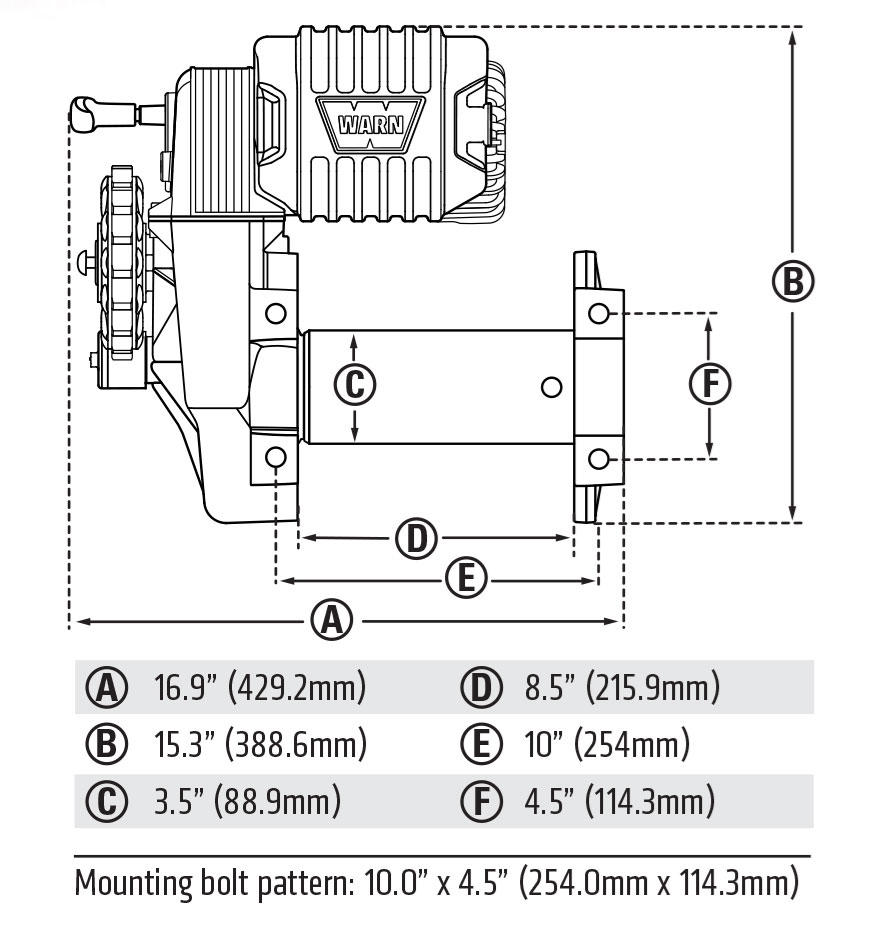

外形尺寸

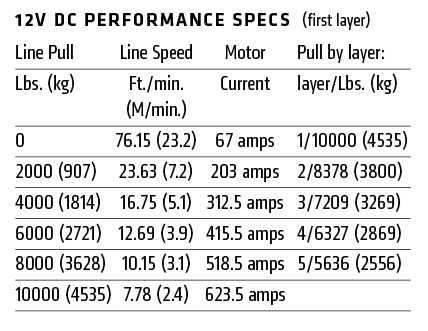

技术图
