VR EVO 8-S Winch
电动绞盘 · VR EVO 8-S Winch
Ideal on 2-door Jeeps and lighter SUVs for everyday pulls and getting yourself out of trouble. The VR EVO 8-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and 2-in-1 wired and wireless remote. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
牵引绞盘
- 额定拉力
- 8,000 lbs（3,629 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• 2-in-1 wired and wireless remote
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Recommended Use | Vehicle Recovery |
| Mount Type | Vehicle Mount |
| Voltage | 12 Volt DC |
| Electrical Control Type | Albright Contactor |
| Motor Type | Series Wound |
| Drive Gear Type | 3-Stage Planetary |
| Gear Reduction Ratio | 218:1 |
| Free Spooling | Yes |
| Brake Type | Spring |
| Line Diameter (IN) | 3/8 Inch |
| Length (FT) | 90 |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Remote Type | corded remote with 11.5' (3.5m) lead |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Max Line Pull/ Line Speed | 8000 Pound / 6.0ft per minute |
| Max Amp Draw/ Line Pull | 298 Amps / 8000 Pound |
| Drum Material | Steel |

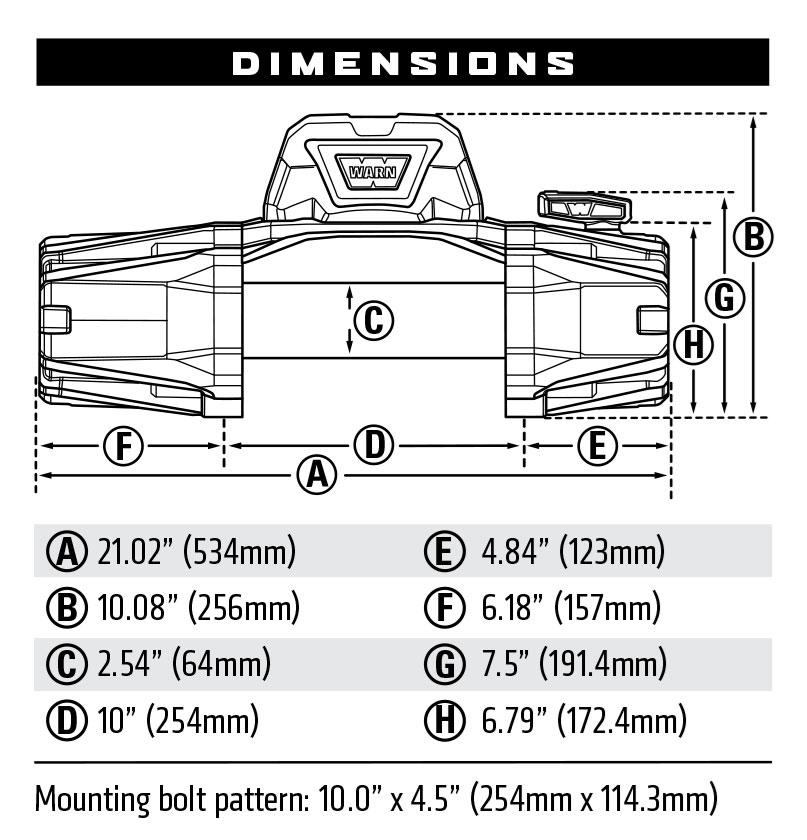

外形尺寸
