XD9 Winch
电动绞盘 · XD9 Winch
A long-time best seller, the compact, low-profile XD9 offers up a 9,000 lb. capacity, fast no-load retrieval speeds, and classic looks. Proven for years, these are among the most trusted winches in our lineup.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Low-profile design and separate control box allows for a wide range of mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Chip-resistant, powder-coated finish
- Durable 5/16" (8mm) diameter galvanized steel wire rope.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope. Backed by the Warn Limited Lifetime Warranty.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 4.6 Horsepower |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 156:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |
| Max Line Pull/ Line Speed | 9000 Pound/ 3.9 Feet Per Minute |
| Max Amp Draw/ Line Pull | 478 Amp Draw/ 9000 Pound |

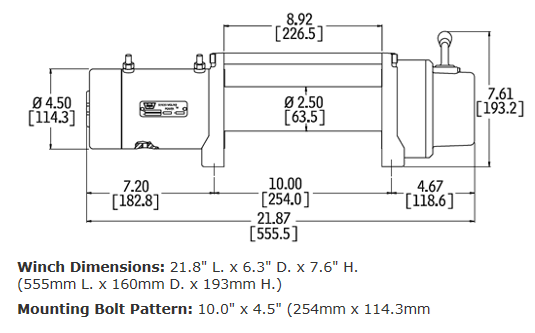

外形尺寸

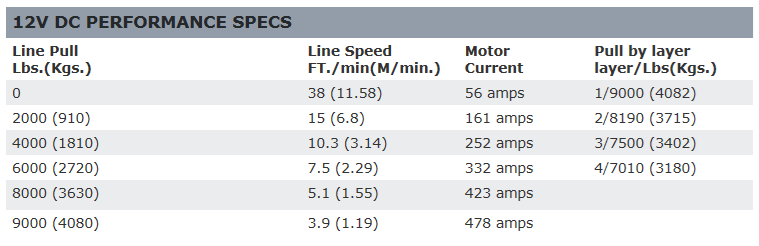

技术图
