XD9i Multi-Mount Winch
电动绞盘 · XD9i Multi-Mount Winch
This Warn Industries XD9000i Series 12 volt electric Winch is portable and has a pull capacity of 9,000 pound. It has a 125 feet wire rope.
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Ability To Run Cool
- Integrated Control Pack
- Winch From Front Or Back Or Your Rig
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
All the power and reliability of the XD9000I in a portable package. No load retrieval line speed is fast 38 Foot per Minute. Integrated control pack protects the Winch's electrical components, and the 4.6 Horsepower Series wound motor delivers big torque and power. Plugs into any standard 2 Inch Class III receiver Hitch and gives you the ability to move the Winch from the front or back of your rig. Power is supplied through quick connect plugs. A good choice for full size rigs and heavier recovery situations. This kit includes Winch, remote, carrier, 7.5 Foot power lead with quick connect plug for front of vehicle and hawse fairlead.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Portable |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 4.6 Horsepower |
| Electrical Control Type | Solenoid |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 156:1 |
| Free Spooling | Yes |
| Brake Type | Direct Drive Cone |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | 125 Feet |
| Line Material | Steel |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |
| Max Line Pull/ Line Speed | 9000 Pound/ 3.9 Feet Per Minute |
| Max Amp Draw/ Line Pull | 478 Amp Draw/ 9000 Pound |

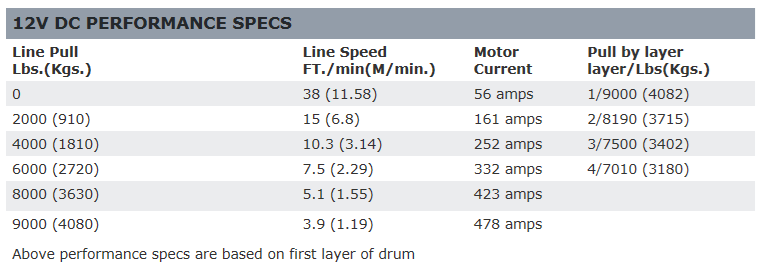

技术图
