WARN
XD9i Winch
电动绞盘 · XD9i Winch
The XD9000i Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,000 pound. It has a 125 feet wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Competition Grade Power, Speed And Reliability
- Three Stage Planetary Gearing
- Low Ampere Draw
- Durable 5/16" (8mm) diameter galvanized steel wire rope.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
You'll see more XD9000I Winches on trail rigs than any other winch. No load line speed of 38 Foot per Minute and three-stage planetary gearing and the ability to run cool with low ampere draw for long Winching cycles are just a few reasons why. The XD9000I features an integrated control pack and all metal housing, which protects the Winch's electrical components the way a roll cage protects you. Comes with 125' of 5/16" wire rope.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 4.6 Horsepower |
| Electrical Control Type | Solenoid |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 156:1 |
| Free Spooling | Yes |
| Brake Type | Direct Drive Cone |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | 125 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |
| Max Line Pull/ Line Speed | 9000 Pound/ 3.9 Feet Per Minute |
| Max Amp Draw/ Line Pull | 478 Amp Draw/ 9000 Pound |

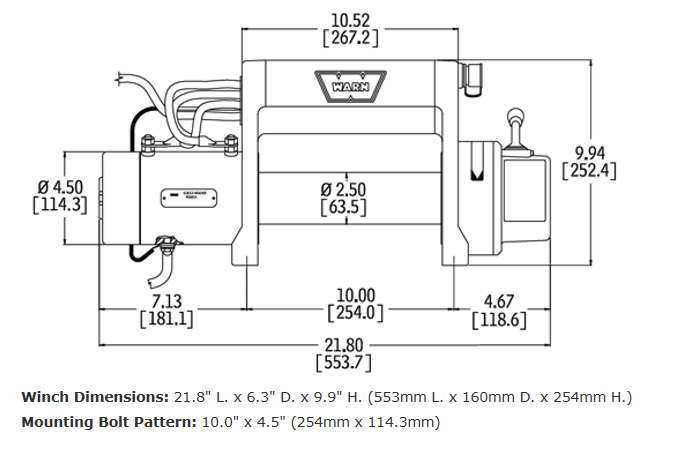

外形尺寸

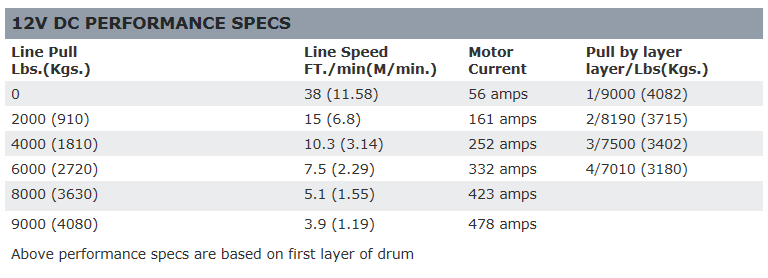

技术图
