WARN
ZEON 10 Platinum Winch
电动绞盘 · ZEON 10 Platinum Winch
Warn ZEON Platinum. The name to trust when it's all on the line.® The ZEON 10 Platinum 12-volt electric winch is vehicle mounted and has a pull capacity of 10,000 pounds. It comes with 80 feet of steel rope and a roller fairlead.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Rated line pull of 10,000 lbs. (4536 kg) single-line
- Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud
- All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating
- Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation
- Automatic mechanical cone brake offers excellent control while winching
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
With state-of-the-art features, cutting-edge technology, and world-class engineering, the ZEON Platinum is the future of winching. The one-of-a-kind Advanced Wireless Remote controls the clutch, power in/power out, plus it displays motor temperature and vehicle battery info. It also can control two 12-volt accessories, which can be plugged directly into the winch.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 162:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 80 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Remote Type | Wireless |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Drum Material | Aluminum |
| Max Line Pull/ Line Speed | 10000 Pound/ 5.6 Feet Per Minute |
| Max Amp Draw/ Line Pull | 465 Amp Draw/ 10000 Pound |

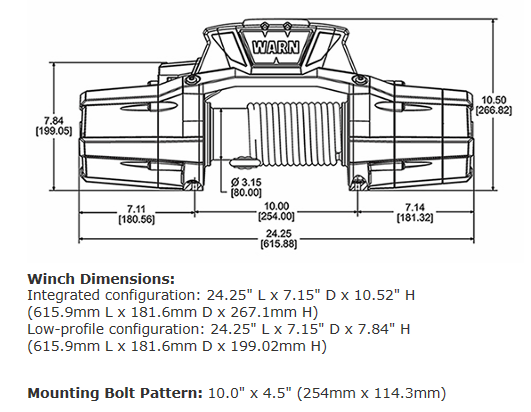

外形尺寸

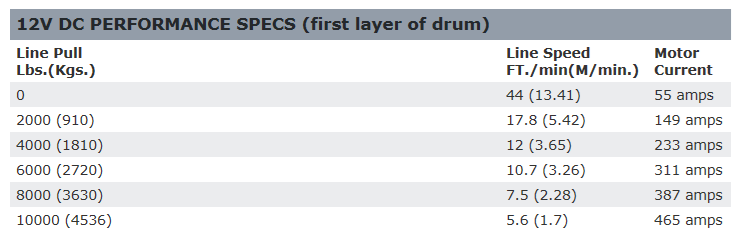

技术图
