ZEON 10 Winch
电动绞盘 · ZEON 10 Winch
Warn ZEON. The name to trust when it's all on the line.® The ZEON 10, a 12-volt electric winch has a pull capacity of 10,000 pounds. It comes with 80 feet of steel rope and a roller fairlead.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
- Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
- 10,000 Pounds Single Line Pulling Capacity
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck busting sealing keeps out everything but the good times. Add a hyper durable cast aluminum housing, satin black finish, and 10,000 Pounds. Single line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 216:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 80 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Max Line Pull/ Line Speed | 10000 Pound/ 4.8 Feet Per Second |
| Max Amp Draw/ Line Pull | 409 Amp Draw/ 10000 Pound |

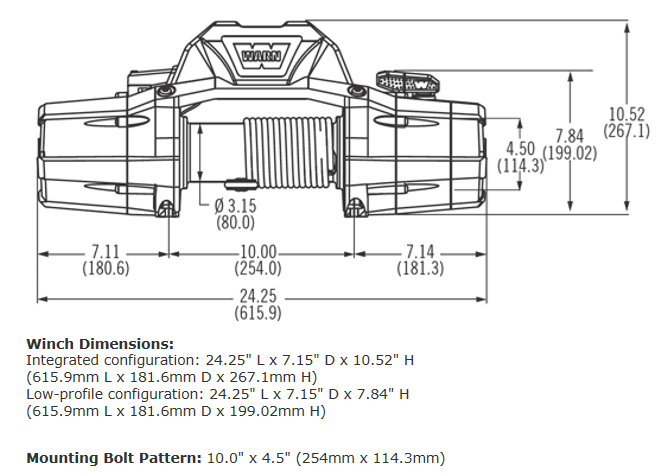

外形尺寸

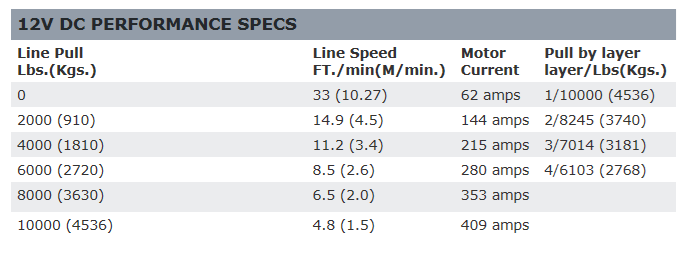

技术图
