ZEON 12-S Platinum Winch
电动绞盘 · ZEON 12-S Platinum Winch
Warn ZEON Platinum. The name to trust when it's all on the line.® The ZEON 12-S Platinum 12-volt electric winch is vehicle mounted and has a pull capacity of 12,000s pound. It has a 80 feet Spydura Pro synthetic rope. Note: This Winch will require winch mount for proper installation.
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- All-New High-Speed Motor, Stronger Gears, And Heat-Treated Ring Gear Deliver 20 Percent Faster Line Speed, Best-In-Class Efficiency, And Our Highest Durability Rating
- Sophisticated, Advanced Remote Provides Operator Feedback On Vehicle Battery Charge And Winch Motor Temperature, Controls Operation Of The Winch Clutch, And More
- Durable Aluminum Structure With Flat Black Powder-Coated Finish And Stainless Steel Fasteners Delivers Durability And Maximum Corrosion Resistance-Exceeding 400 Hours Of Salt-Spray Testing
- Extreme Waterproofing Meets Rigorous IP68 Standards - The Highest Rating In The WARN Truck Or SUV Winch Line-Up
- The New-Style Control Pack With Contactor And Advanced Controls Gives You Extreme Reliability And Weather Resistance
- The name to trust when it's all on the line.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Now the world's most technologically advanced winch - the ZEON Platinum™ - comes in a 12,000 Pounds capacity version spooled with extra-strong Spydura(R) Pro synthetic rope. Already packed with performance features, ZEON Platinum 12-S features the Advanced Wireless Remote that puts winch, clutch and accessory control in the palm of your hand. And now, with the addition of Spydura Pro, you can really see what it means to be winching's top dog.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Electrical Control Type | Solenoid |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 216:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 80 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Remote Type | Advanced Wireless |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Color | Black |
| Drum Material | Aluminum |
| Max Amp Draw/ Line Pull | 469 Amp Draw/ 12000 Pound |
| Max Line Pull/ Line Speed | 12000 Pound/ 3.3 Feet Per Minute |

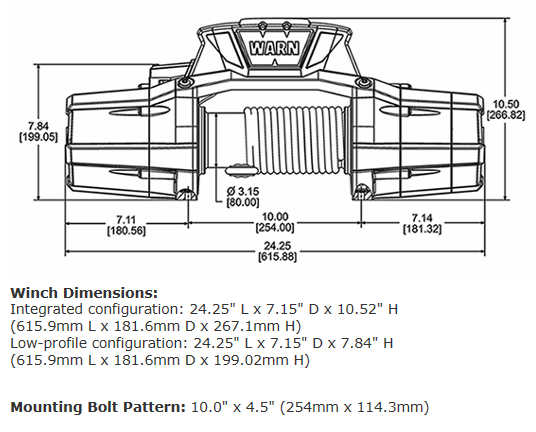

外形尺寸

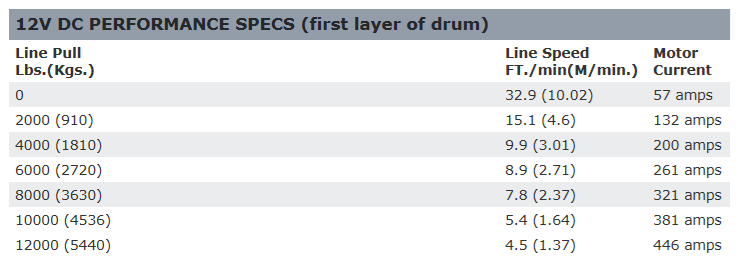

技术图
