WARN
ZEON 12-S Winch
电动绞盘 · ZEON 12-S Winch
Warn ZEON. The name to trust when it's all on the line.® The ZEON 12-S is a 12-volt electric winch. It has a pull capacity of 12,000 pounds and comes with a hawse fairlead and 80 feet Spydura synthetic rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
- New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
- Robust aluminum structure is durable and helps dissipate heat.
- Contactor control for extreme reliability and weather resistance.
- Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The WARN ZEON® has proven itself in the field and among off roaders. Now you can get the 12,000 Pounds capacity ZEON winch with Spydura® Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.

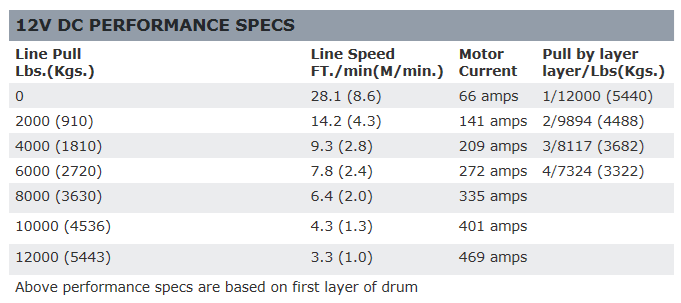

规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Electrical Control Type | Solenoid |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 216:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 80 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Remote Type | 12 Feet Lead |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Color | Black |
| Drum Material | Aluminum |
| Max Amp Draw/ Line Pull | 469 Amp Draw/ 12000 Pound |
| Max Line Pull/ Line Speed | 12000 Pound/ 3.3 Feet Per Minute |

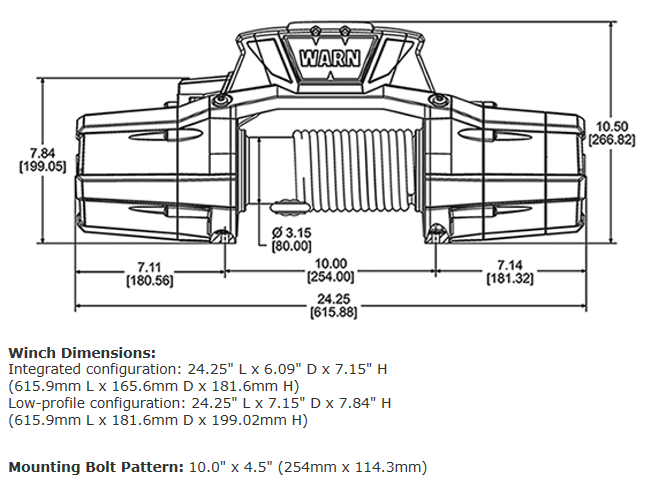

外形尺寸
技术图
