WARN
ZEON 8-S Winch
电动绞盘 · ZEON 8-S Winch
Warn ZEON. The name to trust when it's all on the line.® The ZEON 8-S is a 12-volt electric winch. It requires a vehicle mount and has a pull capacity of 8,000 pounds. It comes with 100 feet synthetic rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 8,000 lbs（3,629 kgf）
- Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
- Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Don't let the good looks fool you. We've packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pound pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 162:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Max Amp Draw/ Line Pull | 413 Amp Draw/ 8000 Pound |
| Max Line Pull/ Line Speed | 8000 Pound/ 6.2 Feet Per Minute |

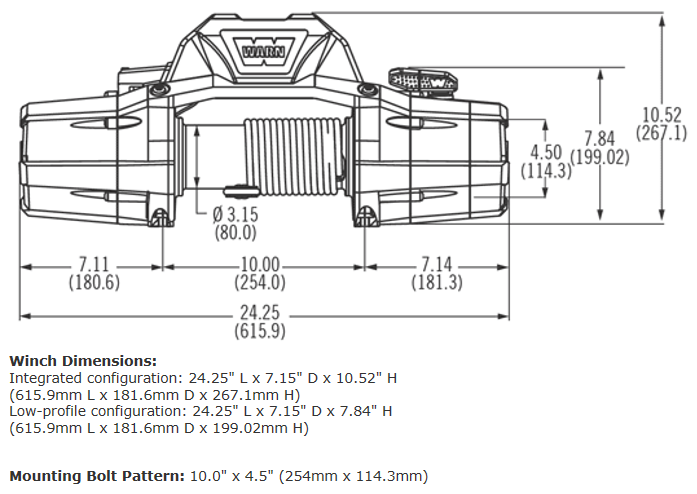

外形尺寸

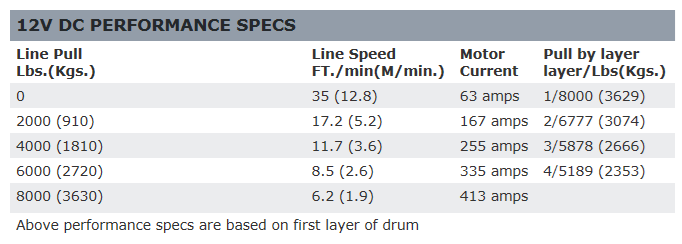

技术图
