ZEON XC 10 - No Rope
电动绞盘 · ZEON XC 10 - No Rope
Warn ZEON XC The name to trust when it's all on the line.® 10,000 lbs. single-line pulling capacity. Winch only with ruggedized corded remote. Rope and fairlead sold separately.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces
- Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated
- All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency
- Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit)
- The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed
- Automatic load-holding cone brake offers excellent control and holding strength
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at our Clackamas, Oregon facility, ZEON XC is a premium, ultra-reliable recovery tool that’s backed by the industry’s leading warranty.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull (Single Line) | 10,000lbs (4536 kg) |
| Motor | 12V DC, series wound |
| Electrical controls | Albright Contactor |
| Remote Control | Corded remote with 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear Ratio | 141:1 |
| Clutch (freespooling) | Rotating Ring Gear |
| Brake | Automatic, six segment mechanical cone |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Rope | No Rope |
| Fairlead | No Fairlead |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon Finish | Satin-black powder coat |
| Corrosion Resistance | 408 hour salt spray, OEM grade fasteners |
| Ingress Protection | IP68/IP69K rated waterproof |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Zeon Dimensions | length: 22.06" (560.3mm), height: 7.83" (198.8mm) |
| Mounting Bolt Pattern | 10" x 4.5" (254mm x 80mm) |

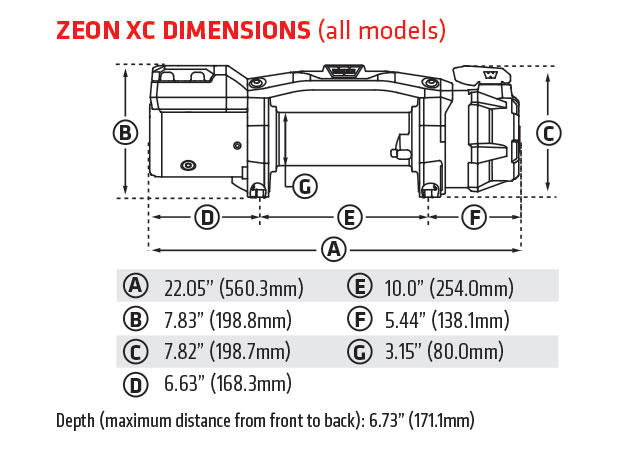

外形尺寸

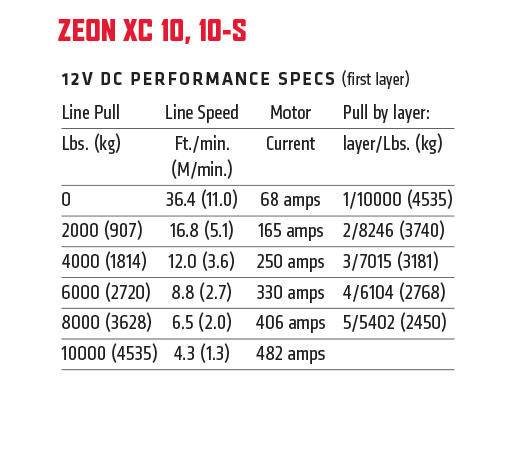

技术图
