ZEON XD 10-S
电动绞盘 · ZEON XD 10-S
Warn ZEON XD. The name to trust when it's all on the line.® The ZEON XD 10-S winch has a pull capacity of 10,000 pounds. It comes with 100’ feet of 3/8” Spydura synthetic rope and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
- Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
- Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
- WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
- Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Redesigned and retooled from the ground up for ultimate performance and durability— ZEON XD is there for the times it just has to work, in all conditions. And with the industry’s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull (Single Line) | 10,000lbs (4536 kg) |
| No Load Line Speed | 40 ft/min (12.19m/min) |
| Rated Load Line Speed | 5 ft/min (1.52m/min) |
| No Load Motor Current | 64 Amps |
| Rated load motor current | 458 Amps |
| Motor | 12V DC, series wound (exclusive WARN high-performance design) |
| Electrical controls | Contactor |
| Wiring | Automotive OE-grade buss bars |
| Corrosion Resistance | 408 hour salt spray |
| Ingress Protection | IP68 submersion and IP69K spray testing (entire unit) |
| Remote Control | Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Geartrain | 3-stage planetary |
| Gear Ratio | 141:1 |
| Clutch (freespooling) | Rotating ring gear with stainless steel clutch lever. Manual lever operation. |
| Brake | Automatic, six segment mechanical cone |
| Rope | 3/8” x 100’ (9.52mm x 30m) Spydura synthetic |
| Fairlead | Black anodized, forged aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon Finish | Satin-black powder coat |
| Final point of assembly | Warn facility in Clackamas, Oregon, USA |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Weight | 85lbs (in box) |

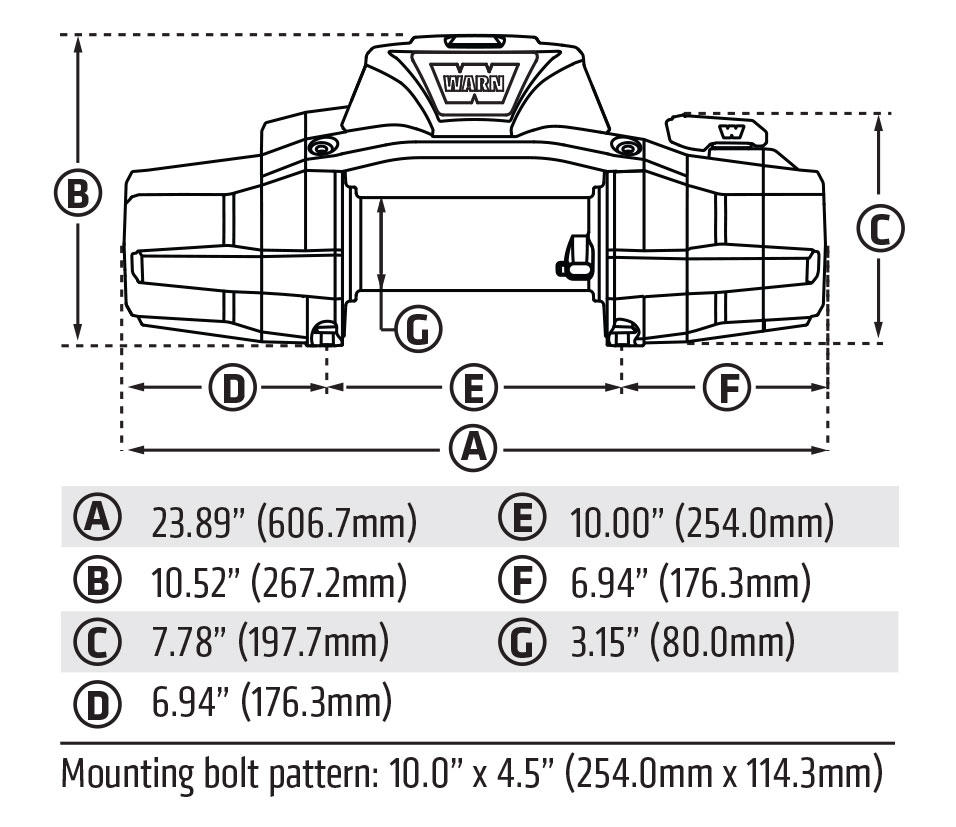

外形尺寸
