WARN
ZEON XP 12-S
电动绞盘 · ZEON XP 12-S
Warn ZEON XP. The name to trust when it's all on the line.® The ZEON XP 12-S has 12,000 lb. capacity—perfect for bigger SUVs and 3/4 or 1-ton trucks. It comes with with 80’ of 3/8” Spydura synthetic rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
- ZEON XP is built on the same platform as ZEON XD and shares the high efficiency motor and geartrain, to deliver a blazing fast no-load line speed of up to 40 ft/min—the fastest in its class.
- Made of forged aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- Built-in remote operated clutch is operated with the push of button. A manual clutch lever offers users a mechanical override.
- The highest level of protection, featuring OEM-grade O-ring rubber gaskets. This new sealing delivers a longer service life and meets the most stringent IP68 submersion and IP69K spray testing.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The all-new ZEON XP is Warn’s top of the line — an ultimate performance pulling machine with unmatched control. It’s the reliable, American assembled winch you can always count on to pull you through.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull (Single Line) | 12,000lbs (5443 kg) |
| No Load Line Speed | 31 ft/min (9.45m/min) |
| Rated Load Line Speed | 3 ft/min (0.91m/min) |
| No Load Motor Current | 67 Amps |
| Rated load motor current | 466 Amps |
| Motor | 12V DC, series wound (exclusive WARN high-performance design) |
| Electrical controls | Contactor |
| Wiring | Automotive OE-grade buss bars |
| Corrosion Resistance | 408 hour salt spray |
| Ingress Protection | IP68 submersion and IP69K spray testing (entire unit) |
| Remote Control | Corded remote with LED feedback light, plus bluetooth enabled HUB Wireless Receiver integrated into the control pack |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Geartrain | 3-stage planetary |
| Gear Ratio | 141:1 |
| Clutch (freespooling) | Rotating ring gear with stainless steel clutch lever. Both manual and remote activated operation. |
| Brake | Automatic, six segment mechanical cone |
| Rope | 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic |
| Fairlead | Black anodized, forged aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon Finish | Satin-black powder coat |
| Final point of assembly | Warn facility in Clackamas, Oregon, USA |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Weight | 85lbs (in box) |

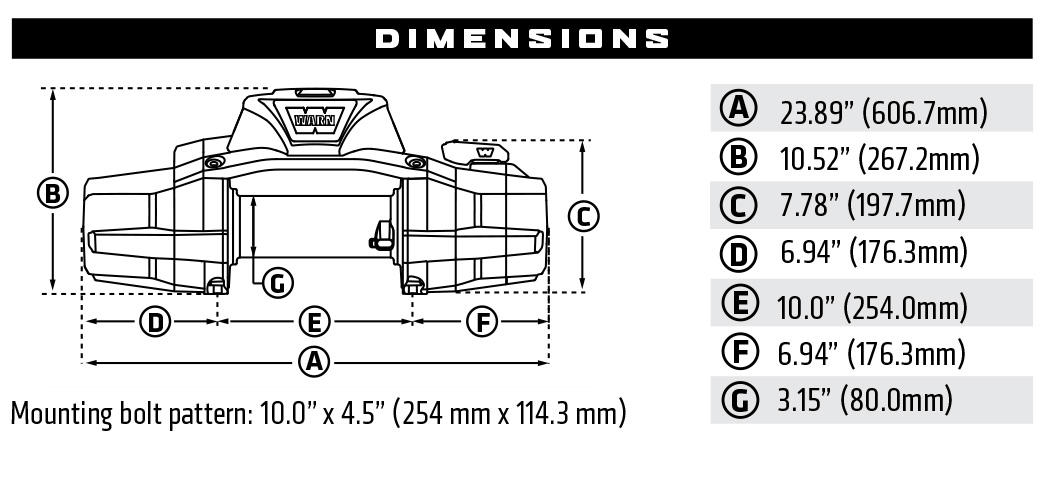

外形尺寸
