HY2000 - 2,000 lb Hydraulic Industrial Hoist
液压绞盘 · HY2000 - 2,000 lb Hydraulic Industrial Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,000 lbs（907 kgf）
- Powerful And Efficient Hydraulic Motor With Robust Sealing
- Durable Powder Coated Finish Stands Up To The Elements And Looks Great
- Limited 1 Year Warranty
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal gear train. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on a compact midsize frame with integrated tie bars that's easy to install.
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Recommended Use | Industrial |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 26:1 |
| Free Spooling | No |
| Brake Type | Automatic Cone Brake |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Remote Type | Not Applicable |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 6 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Line Pull/ Line Speed | 2000 Pound/ 14 Feet Per Minute |

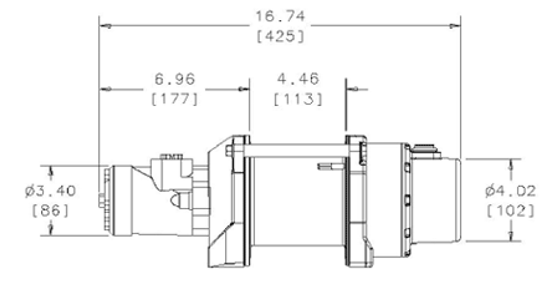

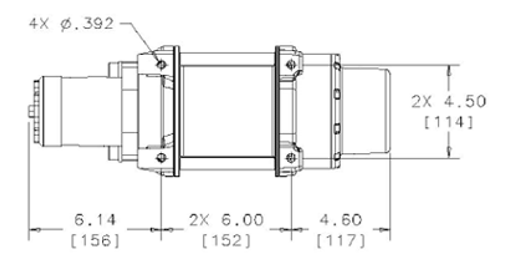

外形尺寸

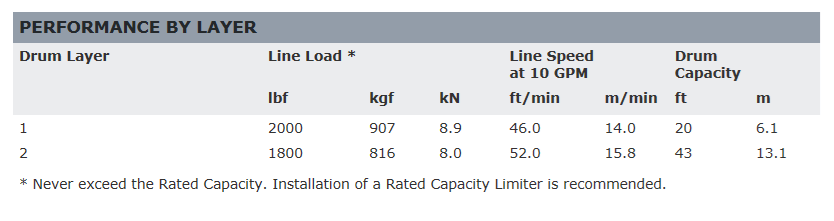

技术图
