HY3000 Hydraulic Hoist, 3000lb
液压绞盘 · HY3000 Hydraulic Hoist, 3000lb
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,000 lbs（1,361 kgf）
- Powerful And Efficient Hydraulic Motor With Robust Sealing
- Durable Powder Coated Finish Stands Up To The Elements And Looks Great
- Limited 1 Year Warranty
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal gear train. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on a large frame with a cast aluminum drum for plenty of wire rope capacity.
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Recommended Use | Industrial |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 21:1 |
| Free Spooling | No |
| Brake Type | Automatic Disc |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Remote Type | Not Applicable |
| Mounting Hole Quantity | 8 |
| Mounting Pattern Length (IN) | 8 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch/ 6-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Drum Material | Aluminum |
| Max Line Pull/ Line Speed | 3000 Pound/ 43 Feet Per Minute |

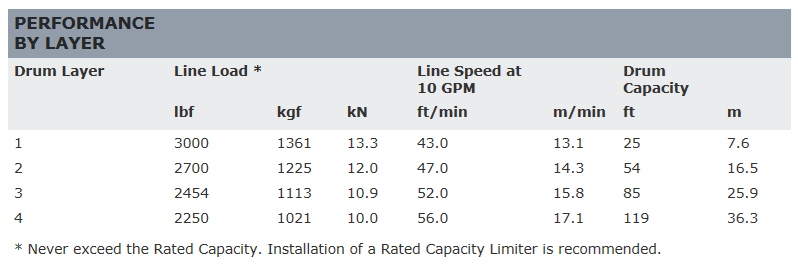

技术图
