HY3000 Industrial Hoist
液压绞盘 · HY3000 Industrial Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,000 lbs（1,361 kgf）
- Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
- Proven 2-Stage Planetary Geartrain
- Automatic Disk Brake That Holds Full Rated Load
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The HY3000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The HY3000 hoist is built on a large frame with a cast aluminum drum for plenty of wire rope capacity.
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Recommended Use | Industrial |
| Voltage | Not Applicable |
| Motor Type | Not Applicable |
| Gear Reduction Ratio | 21:1 |
| Brake Type | Automatic Disc |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Operation Type | Automatic |
| Color | Black |
| Drum Material | Aluminum |
| Max Line Pull/ Line Speed | 2250 Pounds/ 56 Feet Per Minute |

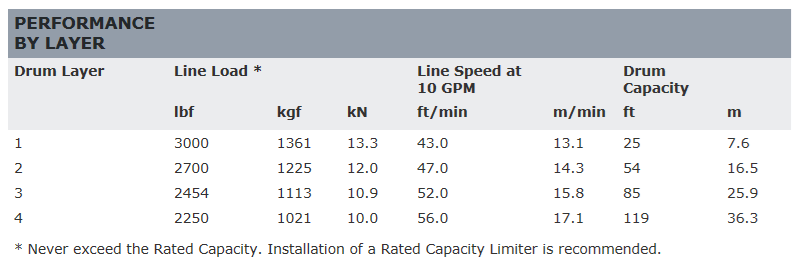

技术图
