Series 20XL 2-Speed Hydraulic Winch (Long Drum, Air Clutch)
液压绞盘 · Series 20XL 2-Speed Hydraulic Winch (Long Drum, Air Clutch)
This Series XL 2-Speed Hydraulic winch comes with a long drum, air clutch, and 20,000 lb capacity. PN 91159.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 20,000 lbs（9,072 kgf）
- Double The Speed Of The Series XL Winch For Fast Rope Retrieval
- 12 Volt Solenoid On The Winch Manifold Shifts The Winch From High-Speed To Low-Speed
- Low Pressure 14.9 Cubic-Inch High-Performance Motor Is Perfect For Extra Heavy-Duty Applications
- Hardened Aircraft-Grade Nickel Chromoly Two Stage Planetary Gear Train For Speed And Reliability
- Limited Lifetime Warranty for Mechanical Components Limited Five (5) Year Warranty for Electrical Components
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic motors allow for extended duty. Hardened steel, two stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world wide quality and safety standards
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Mount Type | Vehicle Mounted |
| Recommended Use | 2-Speed Industrial |
| Drive Gear Type | Planetary |
| Brake Type | Spring Applied Disc |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Color | Black |
| Max Line Pull/ Line Speed | 20000 Pound |

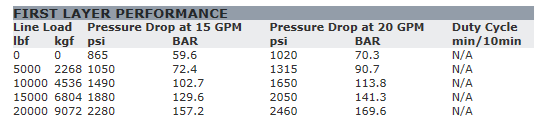

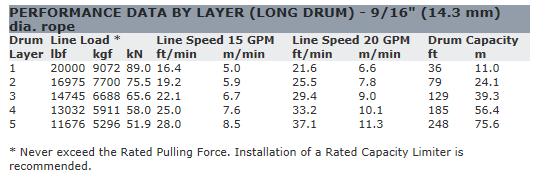

技术图
