Series 20XL-LP Hydraulic Winch (Long Drum, Air Clutch)
液压绞盘 · Series 20XL-LP Hydraulic Winch (Long Drum, Air Clutch)
Series 20XL-LP (low pressure) hydraulic winch is designed for systems that operate below 3000 PSI. This winch comes with a long drum, air clutch and 20,000lb capacity.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 20,000 lbs（9,072 kgf）
- 11.9 Cubic-Inch High-Performance Motor With 20,000 Pounds. Capacity-Great For Wreckers, Trailers, Or Severe Duty Applications
- Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
- Available In Short- And Long-Drum Versions
- Limited Lifetime Warranty for Mechanical Components Limited Five (5) Year Warranty for Electrical Components
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic motors allow for extended duty. Hardened steel, two stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world wide quality and safety standards.
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Mount Type | Vehicle Mounted |
| Recommended Use | Industrial |
| Voltage | Not Applicable |
| Motor Horsepower | Not Applicable |
| Electrical Control Type | Not Applicable |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 28.5:1 |
| Brake Type | Spring Applied Disc |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Mounting Hole Quantity | 8 |
| Mounting Pattern Length (IN) | 18 Inch |
| Mounting Pattern Width (IN) | 7-1/2 Inch |
| Color | Black |
| Max Line Pull/ Line Speed | 20000 Pound/ 21.6 Feet Per Minute |

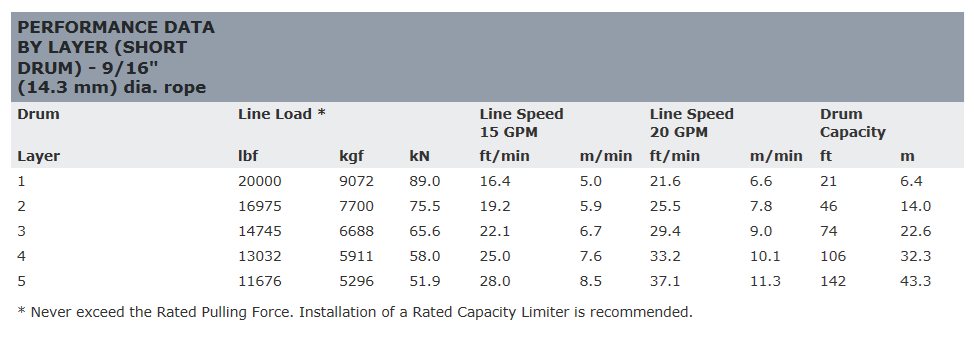

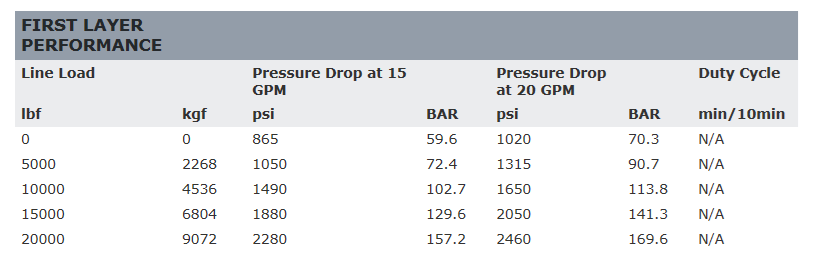

技术图
