Series 30XL 2-Speed Hydraulic Winch, Long Drum, Air Clutch - 30,000 lb
液压绞盘 · Series 30XL 2-Speed Hydraulic Winch, Long Drum, Air Clutch - 30,000 lb
The Series 30XL 2-Speed Hydraulic winch features fast no-load line retrieval, a long drum, air clutch and winching capacity up to 30,000 lbf. (13608 kgf).
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 30,000 lbs（13,608 kgf）
- Double The Speed Of The Series XL Winch For Fast Rope Retrieval
- 12 Volt Solenoid On The Winch Manifold Shifts The Winch From High-Speed To Low-Speed
- Low Pressure 14.9 Cubic-Inch High-Performance Motor Is Perfect For Extra Heavy-Duty Applications
- Hardened Aircraft-Grade Nickel Chromoly Two Stage Planetary Gear Train For Speed And Reliability
- Limited Lifetime Warranty for Mechanical Components Limited Five (5) Year Warranty for Electrical Components
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic motors allow for extended duty. Hardened steel, two stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world wide quality and safety standards
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Mount Type | Vehicle Mounted |
| Recommended Use | 2-Speed Industrial |
| Voltage | Not Applicable |
| Motor Horsepower | Not Applicable |
| Electrical Control Type | Not Applicable |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 36:1 |
| Brake Type | Spring Applied Disc |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Mounting Pattern Length (IN) | 18 Inch |
| Color | Black |
| Max Line Pull/ Line Speed | 30000 Pound/ 18.4 Feet Per Minute |

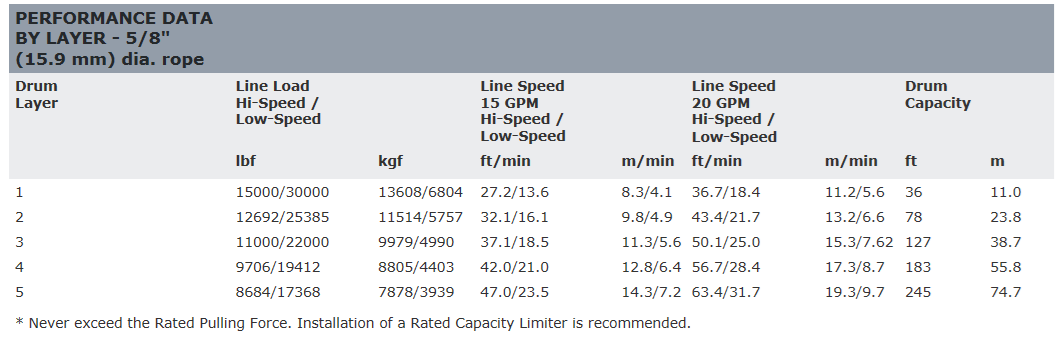

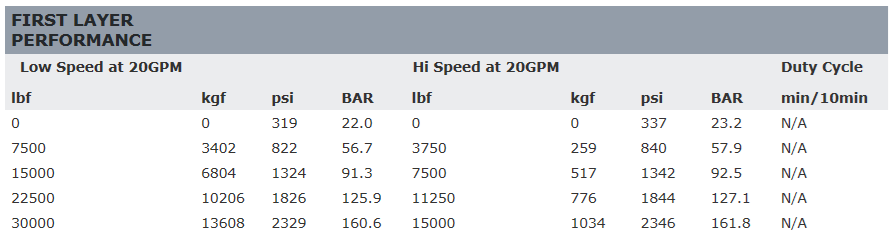

技术图
