Series 30XL Hydraulic Winch, Long Drum, Manual Clutch - 30,000 lb
液压绞盘 · Series 30XL Hydraulic Winch, Long Drum, Manual Clutch - 30,000 lb
Series 30XL Winches for heavy tow, utility and trailer applications. This winch features a long drum and manual clutch.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 30,000 lbs（13,608 kgf）
- 12 Cubic Inch High Performance Motor With 30,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
- Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
- Limited Lifetime Warranty for Mechanical Components Limited Five (5) Year Warranty for Electrical Components
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic Motors allow for extended duty. Hardened steel, two-stage Planetary Gear Trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world-wide quality and safety standards.
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Mount Type | Vehicle Mounted |
| Recommended Use | Industrial |
| Voltage | Not Applicable |
| Motor Horsepower | Not Applicable |
| Electrical Control Type | Not Applicable |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 36:1 |
| Free Spooling | Yes |
| Brake Type | Spring Applied Disc |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Remote Type | No Remote |
| Mounting Hole Quantity | 8 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 18 Inch |
| Mounting Pattern Width (IN) | 7-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Line Pull/ Line Speed | 30000 Pound/ 21.9 Feet Per Minute |

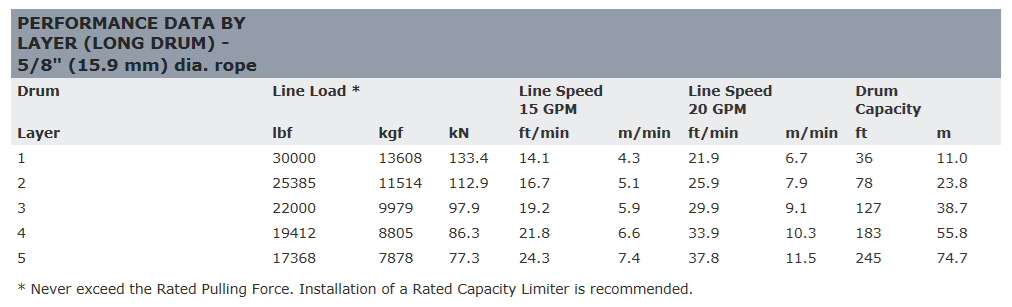

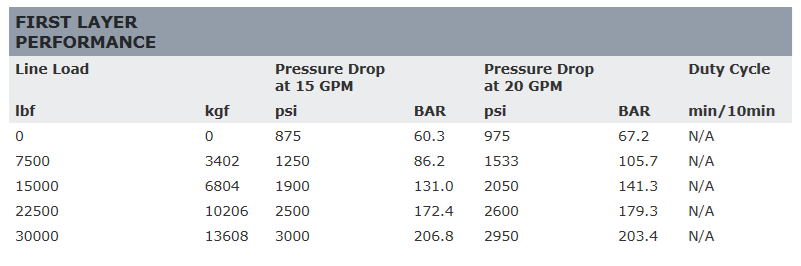

技术图
