Series 6 Industrial Hydraulic Winch - 6,000 lb
液压绞盘 · Series 6 Industrial Hydraulic Winch - 6,000 lb
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 6,000 lbs（2,722 kgf）
- Pulling Capacity up to 6,000lbs
- SAE J706 Compliant Disc Brake Designed For Extended Power Out Use
- Limited Lifetime Warranty for Mechanical Components Limited Five (5) Year Warranty for Electrical Components
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For electrically powered applications, Warn industrial offers a comprehensive line of products to meet or exceed your expectations. All Electric Winches feature heavy duty 12 or 24 Volt Series wound industrial motors and hardened steel three stage planetary gear trains that provide efficient and reliable operation. Every Warn industrial planetary Winch complies with the world's most stringent standards, including SAE J706 and NFPA
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Mount Type | Vehicle Mounted |
| Recommended Use | Industrial |
| Voltage | Not Applicable |
| Motor Horsepower | Not Applicable |
| Electrical Control Type | Not Applicable |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 26:1 |
| Free Spooling | Yes |
| Brake Type | Double Cone |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Remote Type | No Remote |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Line Pull/ Line Speed | 6000 Pound/ 32 Feet Per minute |

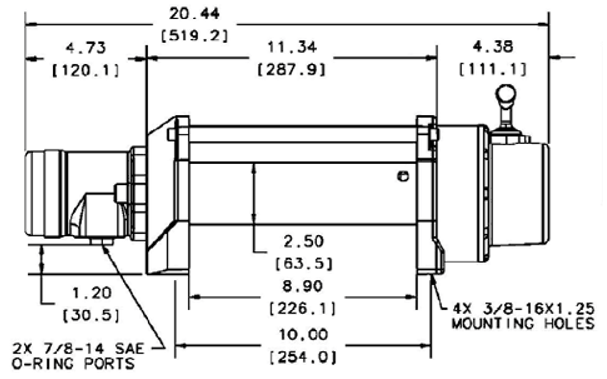

外形尺寸

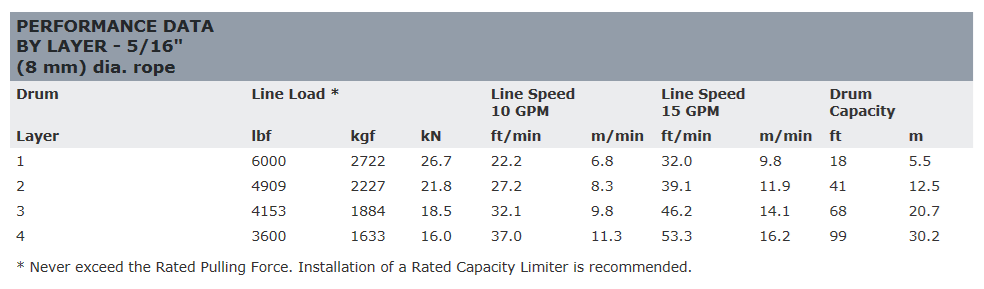

技术图
