Series 9 Hydraulic Winch - Clockwise - 30282 - OBS
液压绞盘 · Series 9 Hydraulic Winch - Clockwise - 30282 - OBS
Dependable Workhorse with 9,000 lbf. of pulling power.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Perfect for tow, utility and trailer applications
- Heavy-duty automatic disc brake provides dependable operation
- Meets SAE J706 and CE standards
- Limited Lifetime Warranty for Mechanical Components Limited Five (5) Year Warranty for Electrical Components
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
For hydraulic winching applications, no product performs better than a Warn industrial Winch. Powerful hydraulic motors allow for extended duty. Hardened Steel, two stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world wide quality and safety standards
规格表
| Specification | Value |
|---|---|
| Type | Hydraulic |
| Mount Type | Vehicle Mounted |
| Recommended Use | Industrial |
| Voltage | Not Applicable |
| Motor Horsepower | Not Applicable |
| Electrical Control Type | Not Applicable |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 27:1 |
| Free Spooling | Yes |
| Brake Type | Disc Brake |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | Yes |
| Mounting Hole Quantity | 8 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 12 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Line Pull/ Line Speed | 9000 Pound/ 28.5 Feet Per Minute |

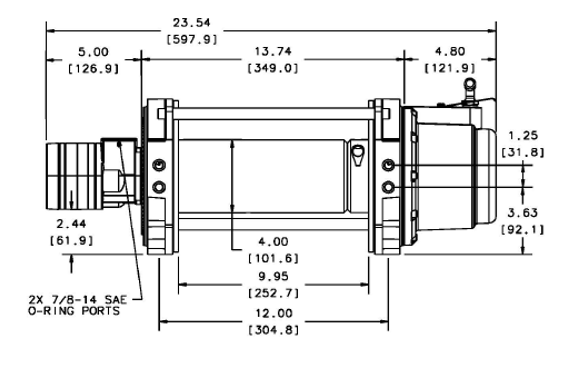

外形尺寸

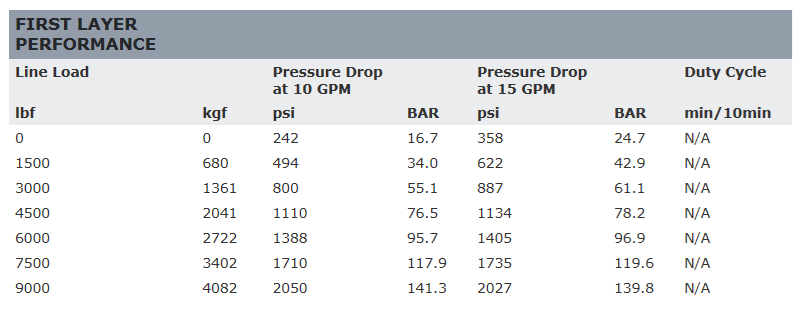

技术图
