WPT
WHP53S-HS
液压绞盘 · 12000 lbf Planetary Hydraulic Hoists
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
- Efficient two-stage hydraulic planetary design
- Multiple disc brake is spring-applied and hydraulically released
- Easily serviced compact design
- Manual override option available
规格表
| Gear Ratio | Weight lb kg | Hydraulic Motor Flow gal/min l/min | Hydraulic Motor Pressure lbf/in² MPa | Bare Drum Line Pull lbf kN | Bare Drum Line Speed ft/min m/min | Full Drum Line Pull lbf kN | Full Drum Line Speed ft/min m/min | Drum Capacity Cable Dia. Length |
|---|---|---|---|---|---|---|---|---|
| 59 : 1 | 595 | 75 | 1,700 | 12,000 | 154 | 6,600 | 260 | 1/2" - 438' |
| 270 | 284 | 12 | 53 | 47 | 29 | 79 | 13mm - 130m |

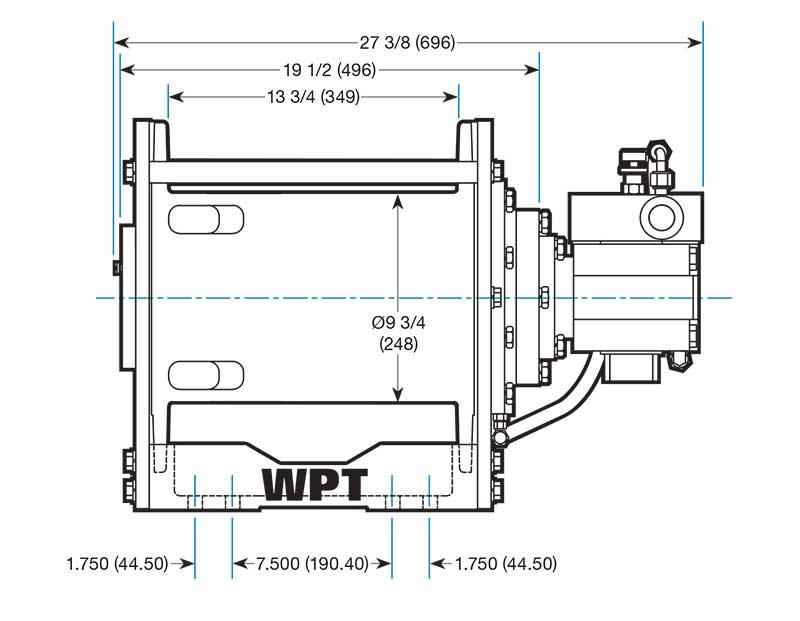

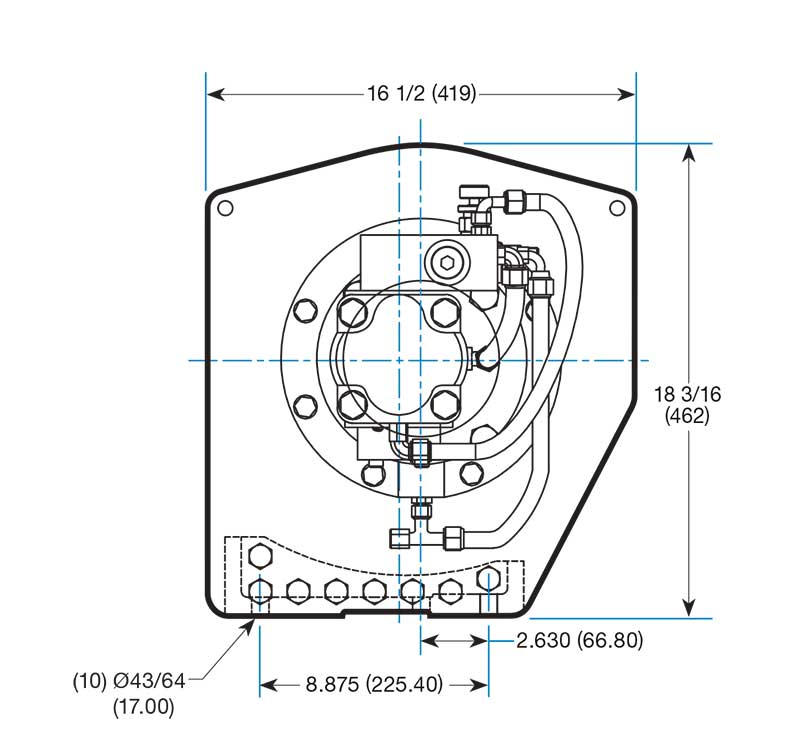

外形尺寸
