WPT
WHP36S-HS
液压绞盘 · 8000 lbf Planetary Hydraulic Hoists
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 8,000 lbs（3,629 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
- Efficient two-stage hydraulic planetary design
- Multiple disc brake is spring-applied and hydraulically released
- Easily serviced compact design
- Manual override option available
规格表
| Gear Ratio | Weight lb kg | Hydraulic Motor Flow gal/min l/min | Hydraulic Motor Pressure lbf/in² MPa | Bare Drum Line Pull lbf kN | Bare Drum Line Speed ft/min m/min | Full Drum Line Pull lbf kN | Full Drum Line Speed ft/min m/min | Drum Capacity Cable Dia. Length |
|---|---|---|---|---|---|---|---|---|
| 59 : 1 | 415 | 65 | 1,400 | 8,000 | 138 | 5,600 | 200 | 1/2" - 344' |
| 188 | 246 | 9.7 | 36 | 42 | 25 | 60 | 13mm - 105m |

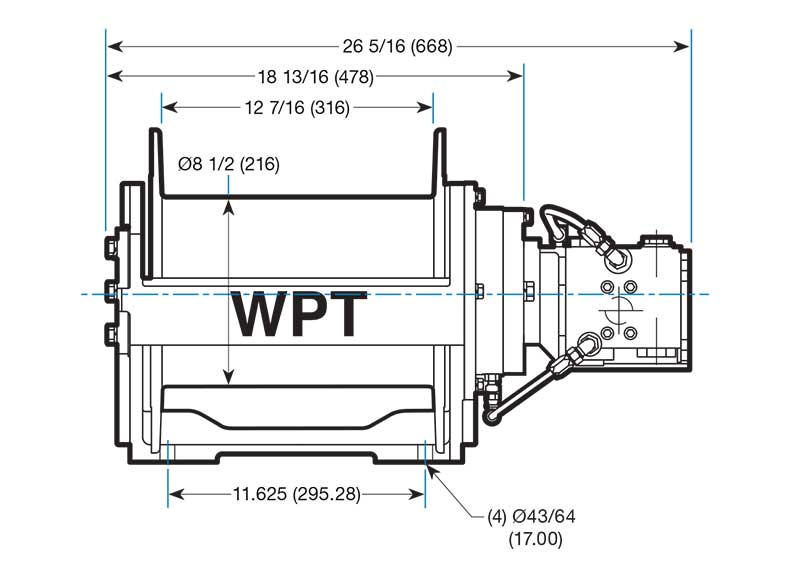

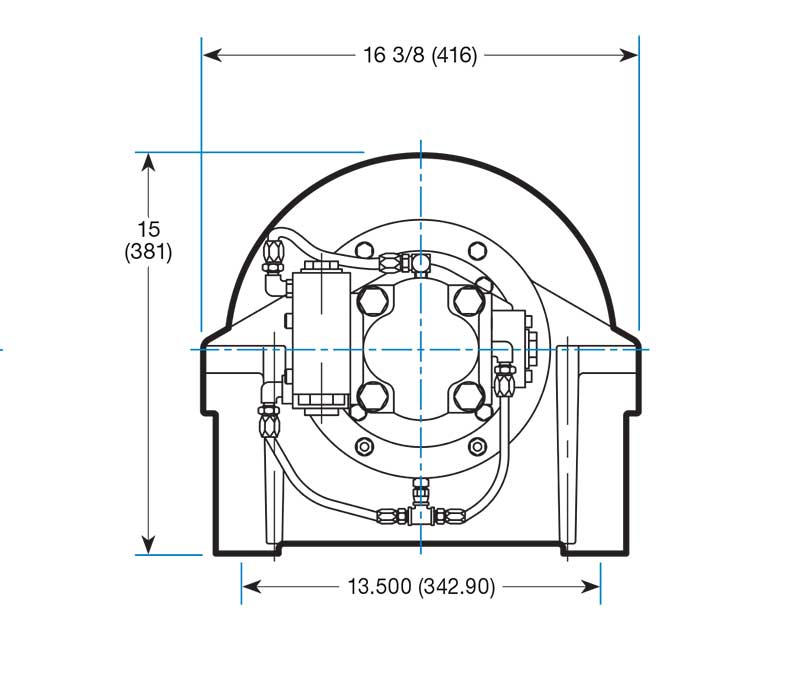

外形尺寸
