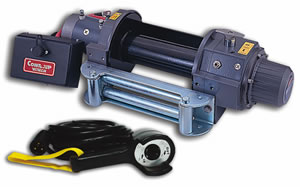

 Electric Recovery Winch  DP-10000ES
 pic/DP-10000es.jpg
 Note: Roller fairlead does not mount to winch

FEATURES

● Heavy duty series wound mound motor gives high torque and fast line speed
● High efficiency 4-stage planetary gear train for greater pulling force
● The U.S. Germany, U.K., France, etc patents automatic, full-load cone brake holds full load brake
● 10:1 D/d ratio allows for heavy duty application on car transporter,wrecker, tractor, lorry and fire / rescue engine.
● Auxiliary magnet brake performs instant braking
● Rotating ring gear freespool is a pull and turn design for rapid wire ropepayout
● Heavy duty sealed solenoid gives better water resistance and lower amp.draw


 SPECIFICATION

 Line Pull : 4,535kg / 10,000 lb
 Motor 12V : 3,430 w/4.6 hp
           24V : 2,237 w/3.0 hp
 Control: detachable slenoid pack
 Gear Train: 4 stage planetary gears
 Gear Ratio: 277 : 1
 Free-spool:rotating ring gear
 Brake: automatic, full load cone brake & auxiliary magnet brake
 Drum Size: 89 mm x 253 mm (3.5" x9.96")
  Mounting Bolt Pattern :
291.6 mm x114.3 mm (11.48" x 4.5")
374.2 mm x 171.2 mm (14.73" x 6.74")

 LINE PULL AND ROPE CAPACITY (1 st layer of wire rope on drum)
Layer of
Wire Rope

Line Pull

kg/lb
Total Rope onthe Drum
m/ft
1st4,535 / 10,0007.5 / 25
2nd3,772 / 8,31516.4 / 54
3rd3,230 / 7,120 26.9 / 88
4th2,824 / 6,225 38.9 / 128
5th2,508 / 5,530 40 /131
A 9.5 mm x 40 m (3/8" x131') galvanized aircraft A7 x 19 wire rope recommended

WARNING
Winches are not to be used for the lifting or moving of persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

 DIMENSIONS(mm)

 pic/DP-10000es-3D.gif

STANDARDACCESSORIES

● Detachable solenoid pack WA-0815
● Remote control WA-0310
● Roller fairlead WA-0504
● 1.8m(6') 2 gauge cable with connections

OPTION ACCESSORIES
● Cable tensioner WA-0902

PACKAGE
Winch weight : 44 kg / 97 lb
Gross Weight :  60 kg / 132 lb
Box Dimension : 800 x 370 x 290 mm(31.5" x 14.6" x 11.4")
